Triton Stormwater Solutions products exceed the H-25 AASHTO Load Ratings while providing the best attenuation rainwater harvestings system available

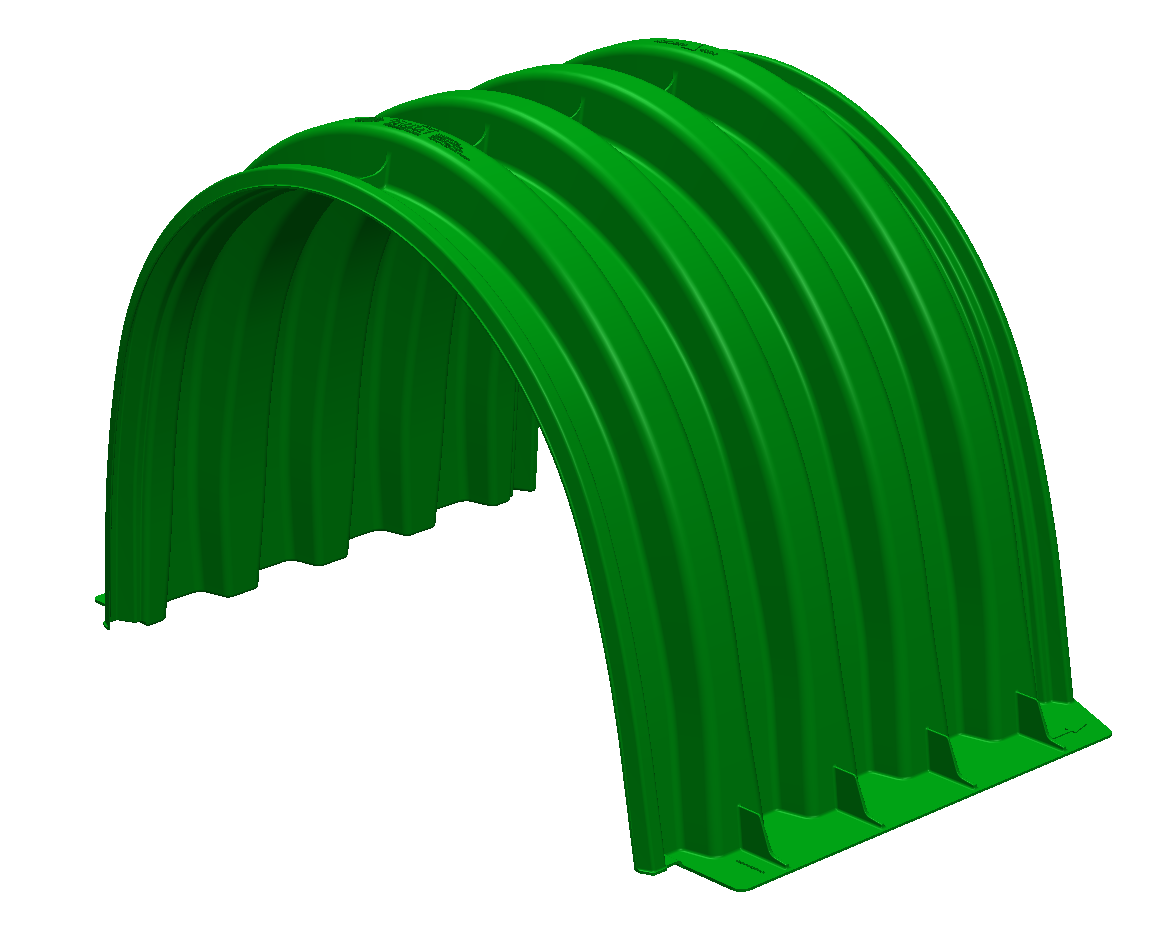

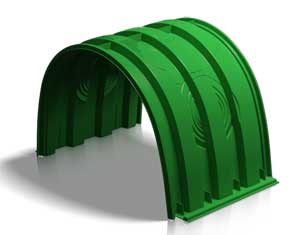

S-29 Stormwater Chamber

Dimensions 59” x 36” x 35” (WxHxL)
1498.6mm x 914.4mm x 889mm

Weight 32 lbs / 14.5 kg

Bare Chamber Storage 29 ft³ / .82 m³

Description This eco-friendly stormwater chamber boasts an 42.8 cubic feet of storage with a minimum of 6” of stone above, below and 7.5” between chambers.

Exceeds H-20 by 5 times with 18” of cover with pavement layer.

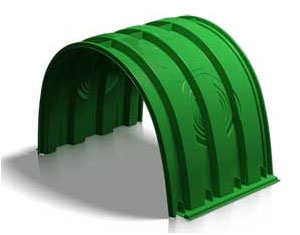

S-22 Stormwater Chamber

Dimensions 55” x 35” x 30” (WxHxL)
1397mm x 863.6mm x 762mm

Weight 28 lbs / 12.7 kg

Bare Chamber Storage 23.2 ft³ / .80 m³

Description This eco-friendly stormwater chamber boasts 33.8 cubic feet of storage with a minimum of 6” of stone above, below and 6” between chambers.

Exceeds H-20 by 5 times with 18” of cover with pavement layer.

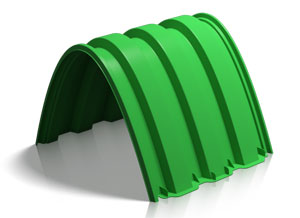

C-10 Stormwater Chamber

Dimensions 40” x 25” x 32” (WxHxL)
1016mm x 635mm x 812.8mm

Weight 15 lbs / 6.8 kg

Bare Chamber Storage 9.8 ft³ / .28 m³

Description This eco-friendly stormwater chamber boasts an 17.6 cubic feet of storage with a minimum of 6” of stone above, below and 7.5” between chambers.

Exceeds H-20 by 5 times with 18” of cover with pavement layer.

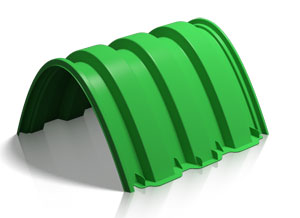

M-6 Stormwater Chamber

Dimensions 34” x 17.5” x 32” (WxHxL)
836.6mm x 44.5mm x 812.8mm

Weight 12 lbs / 5.4 kg

Bare Chamber Storage 5.6 ft³ / .16 m³

Description This eco-friendly stormwater chamber boasts an 11.5 cubic feet of storage with a minimum of 6” of stone above, below and 7.5” between chambers.

Exceeds H-20 by 5 times with 18” of cover with pavement layer.

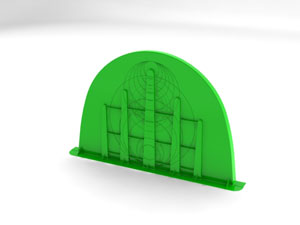

S-29 End Cap

Description End caps are required only at the beginning and the end of each row of chambers.

S-22 End Cap

Bare End Cap Storage 3.91 cf³ / .11 m³

Description End caps are required only at the beginning and the end of each row of chambers.

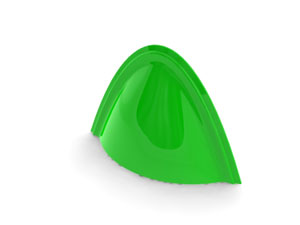

C-10 End Cap

Description End caps are required only at the beginning and the end of each row of chambers.

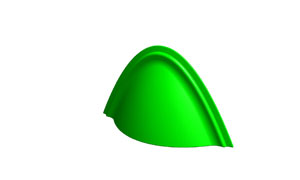

M-6 End Cap

Description End caps are required only at the beginning and the end of each row of chambers.

S-22 MHR Spacer

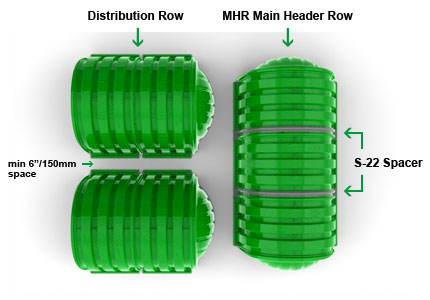

S-22 End Cap Diagram

Description Add spacer to MHR chambers only to allow distribution row chamber rows to be spaced 6"/150mm apart.

Diagram Description S-22 Spacer in MHR to ensure the proper spacing and alignment of the S-22 Distribution Rows with the MHR.

Dumpster

Dimensions 59” x 19” x 74” (WxHxL)
121.9 cm x 119.4 cm x 111.8 cm

Weight 44 lbs / 20 kg

Storage 24 ft³ / .68 m³

Description This part is made out of 100% recycled material and was designed to collect all the sediment and debris that may have gotten past the initial filtration system. This dumpster can be used by itself or in conjunction with the Sump Bin. If used with the Sump Bin then the square area of the bottom of the dumpster will need to cut so that the sump bin can drop into the dumpster to allow for greater storage capacity.

Triton Stormwater Solutions™ Recommends a FloGard+PLUS, but the system can be used with any other approved mechanical filter.

Sump Bin

Dimensions 48” x 47” x 44” (WxHxL)
121.9 cm x 119.4 cm x 111.8 cm

Weight 72 lbs / 32.6 kg

Storage 43.5 ft³ / 1.23 m³

Description This part is made out of 100% recycled material and was designed to increase the storage capacity and allow for a sump if a secondary filtration unit is needed. (For example like an enviro-pod or hydro clean filter) The Sump Bin can also be piped to a holding tank to allow the stormwater to be used for an irrigation and or a gray water source.

Also allows for an off the shelf secondary filtration system to be added.
Example:
FloGard+PLUS

Sediment Floor

Dimensions 59.7” x .8” x 37.1” (WxHxL)
151.6 cm x 2.0 cm x 94.2 cm

Weight 13 lbs / 5.9 kg

Chamber Storage N/A

Description This part is made out of 100% recycled material and was designed for the chamber units to rest upon. This floor allows for the collection of sediments or fines that may get past the main filter at the inlet and keeps the sediments from getting into the main filtration fields. The floor will retain and direct any debris or sediments to the end of the header row where they are collected in a sump basin.

The sump basin can be easily accessible via a manhole that is installed above the sump basin. The floor can be added to any number of runs and, as an option, the perpendicular stormwater chambers can also have the floor installed if a detention system is desired.

MHR Filter Elbow

Description The TritonSWS Main Header Row Filter Elbow and reusable stainless steel Filter Media Puck allow developers to pre-treat a wide range of pollutants by filing the Filter Media Puck with any type of filter media to treat any type of pollutant that might be found in the stormwater before it enters the stormwater storage chambers. In combination with Triton's innovative Main Header Row, featuring advanced sediment control, the MHR Filter allows for the most efficient handling, storage and filtration of stormwater available.

Media Puck-Deep

Description This Filter Media Puck is used when you want to increase the media volume by placing the filter media puck into the longer end of the Filter Elbow. Whether you need to capture Hydrocarbons, or a host of other contaminants, the TritonSWS Main Header Row Refillable Stainless Steel Filter Media Puck will allow you to tailor a system to meet your project's needs. By simply filing the Filter Media Puck with any type of filter media to treat any type of pollutant that might be found in the stormwater before it enters the stormwater storage chambers make the TritonSWS system flexible, easily maintained, and affordable. The Main Header Row Filter Elbow is a revolutionary new approach to stormwater management, pollution control and water quality.

Media Puck-Shallow

Description This Filter Media Puck is used when placing the filter media puck into the shorter end of the Filter Elbow. Whether you need to capture Hydrocarbons, or a host of other contaminants, the TritonSWS Main Header Row Refillable Stainless Steel Filter Media Puck will allow you to tailor a system to meet your project's needs. By simply filing the Filter Media Puck with any type of filter media to treat any type of pollutant that might be found in the stormwater before it enters the stormwater storage chambers make the TritonSWS system flexible, easily maintained, and affordable. The Main Header Row Filter Elbow is a revolutionary new approach to stormwater management, pollution control and water quality.

Sediment Control

Description The floor will retain and direct any debris or sediments to the end of the header row where there is a sump basin to collect the debris and or sediments. The sump basin can be easily accessible via a manhole that is installed above the sump basin. As an option the perpendicular stormwater chambers can also have the floor installed and any number of sump basin assemblies if clean out and detention is desired.

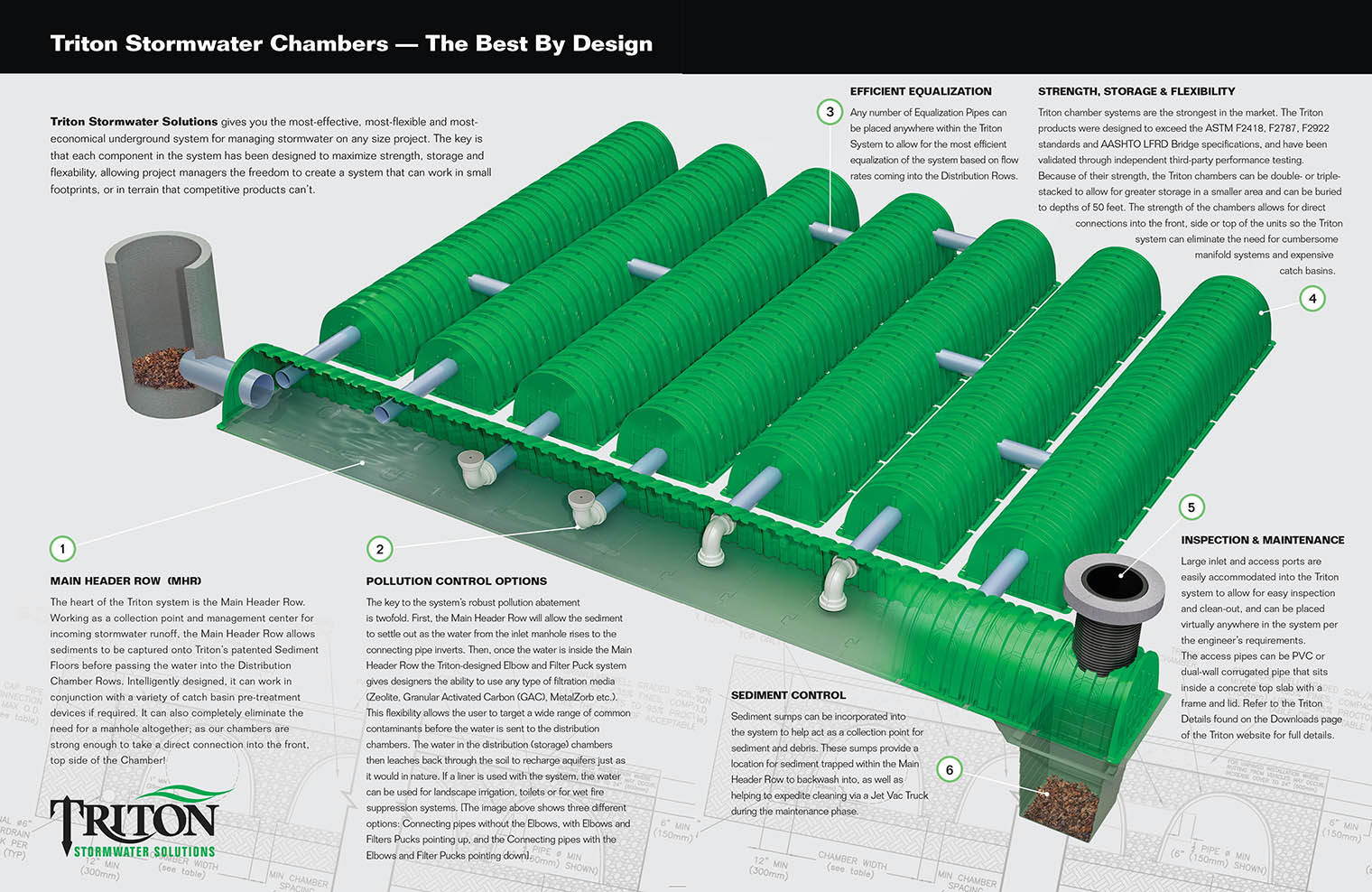

Main Header Row

Description The main row Header row consists of a solid floor that the stormwater chambers rest upon. This floor allows for the collection of sediments or fines that may get past the main filter at the inlet and keeps the sediments from getting into the main filtration field. The floor will retain and direct any debris or sediments to the end of the header row where there is a sump basin to collect the debris and or sediments. The sump basin can be easily accessible via a manhole that is installed above the sump basin. As an option the perpendicular stormwater chambers can also have the floor installed if a detention system is desired.

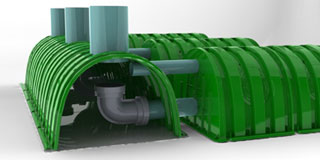

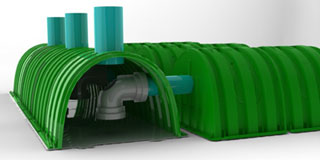

MHR Filter System

Option 1 Watch Animation

Option 2 Watch Animation

Description Stopping pollution early in the stormwater treatment cycle is critical to protecting water supplies and meeting stringent regulations. TritonSWS is the only chamber manufacturer that offers the flexibility to filter water before it enters the storage system without relying in filter fabric that gets clogged and is virtually impossible to clean.

The new TritonSWS MHR Filter Elbow and stainless steel Filter Media Puck allows developers to pre-treat a wide range of pollutants by filing the Filter Media Puck with any type of filter media to treat any type of pollutant that might be found in the stormwater before it enters the stormwater storage chambers. In combination with Triton's innovative Main Header Row, featuring advanced sediment control, the MHR Filter allows for the most efficient handling, storage and filtration of stormwater available.

Whether you need to capture Hydrocarbons, or a host of other contaminants, the TritonSWS MHR Filter Elbow and Refillable Stainless Steel Filter Media Puck will allow you to tailor a system to meet your project's needs. Flexible, easily maintained, and affordable, the MHR Filter Elbow is a revolutionary new approach to stormwater management, pollution control and water quality.
